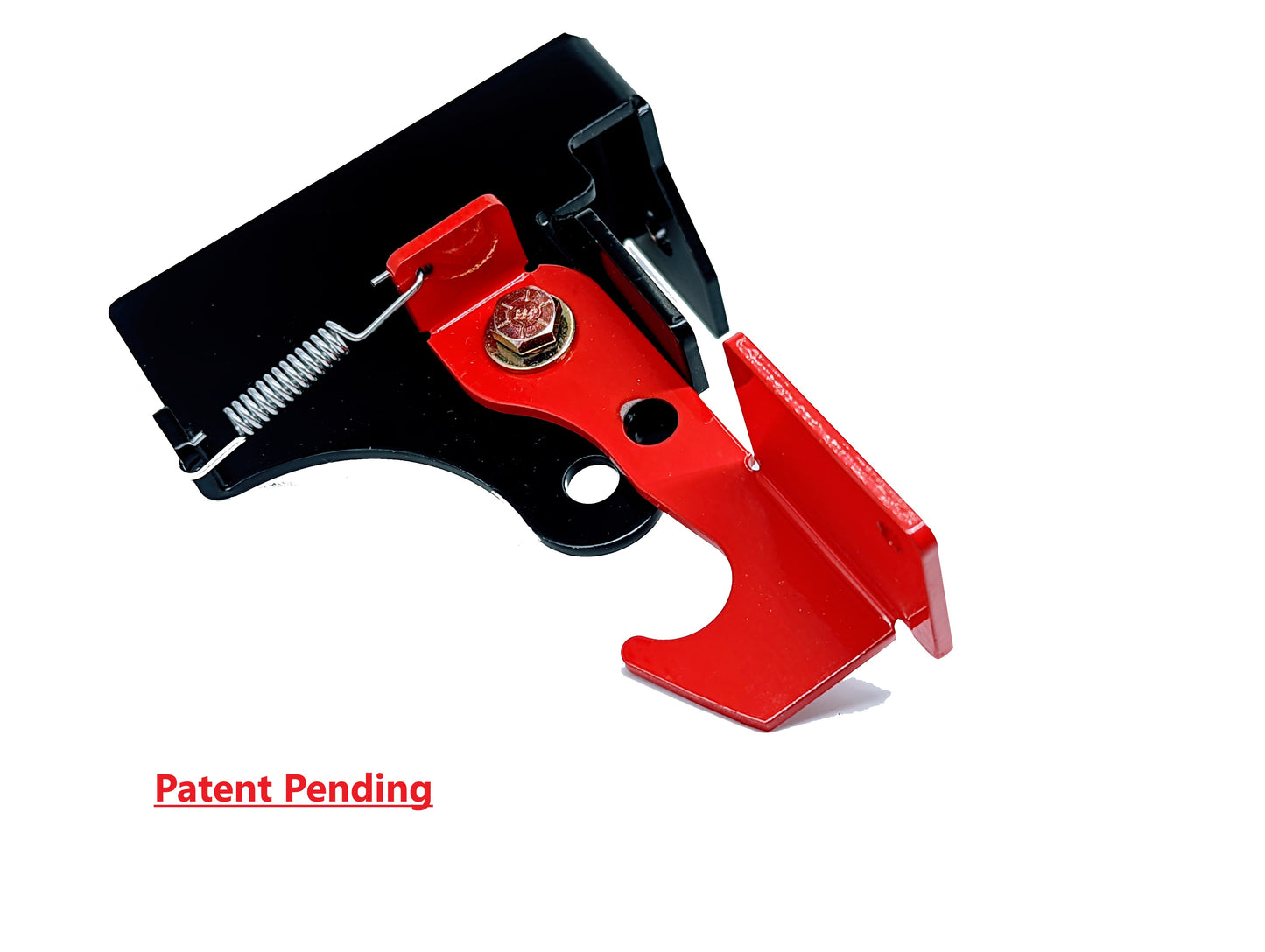

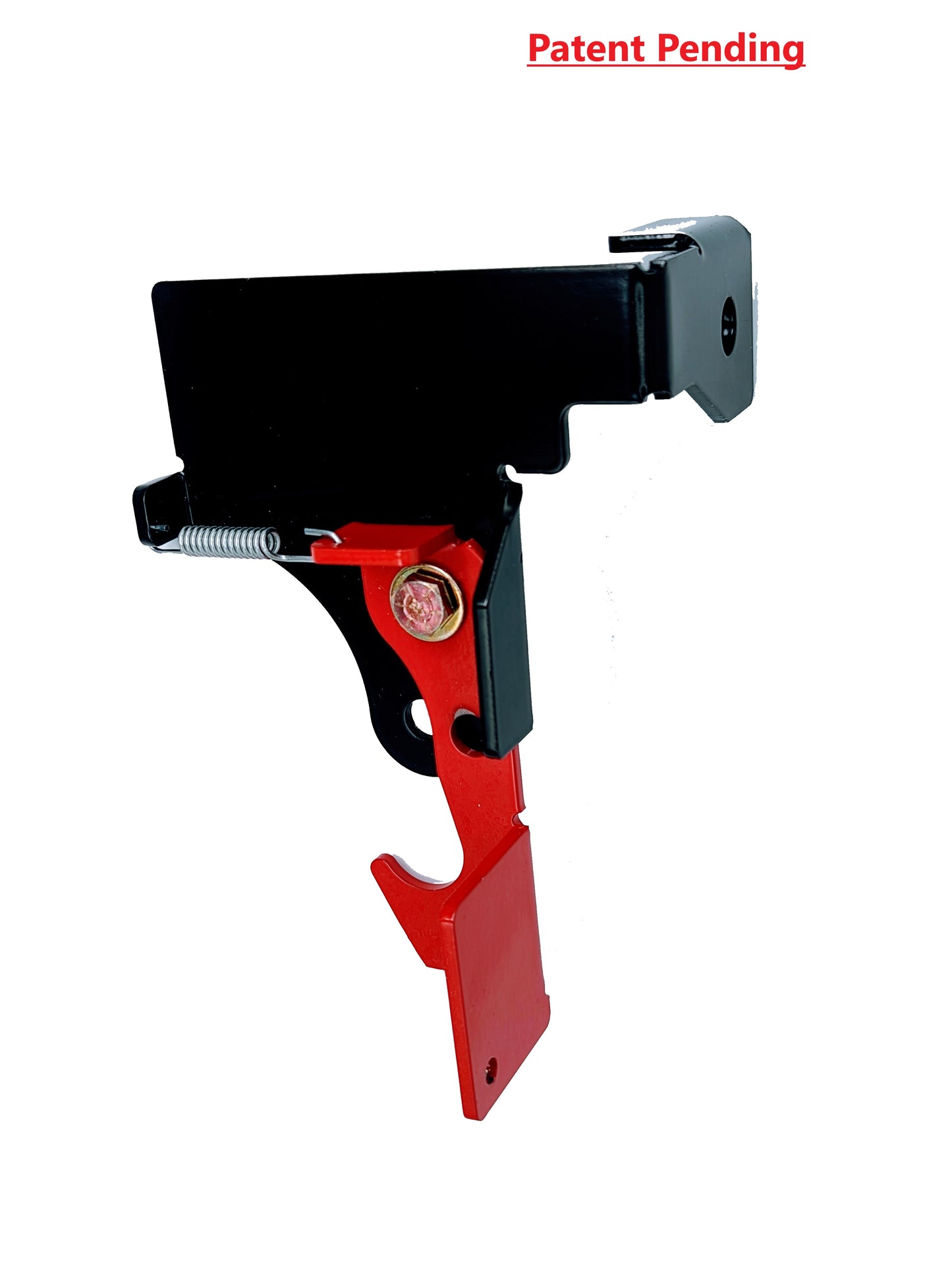

WILD CAT TRAIL/SPORT PARKING BRAKE

Parking brake for your Wild Cat TRAIL/SPORT - Fits 2013 or newer models.

This brake allows for a pad-lock to be inserted through pre-machined holes to give you the added option to use as a theft deterrent.

Installation is simple and quick.

• Remove the one factory nut from gas pedal.
• Put on the Spring Brake Thingy,  the brake will be between the gas pedal and brake pedal, with the red hook facing towards the drivers door, and the flat "wing" with the hole pointing towards the dash.
• Put the factory nut back on

To engage, push brake pedal with left foot, slide locking hook over brake pedal arm with your right foot. To release, press the brake pedal again until the arm springs back to starting position.

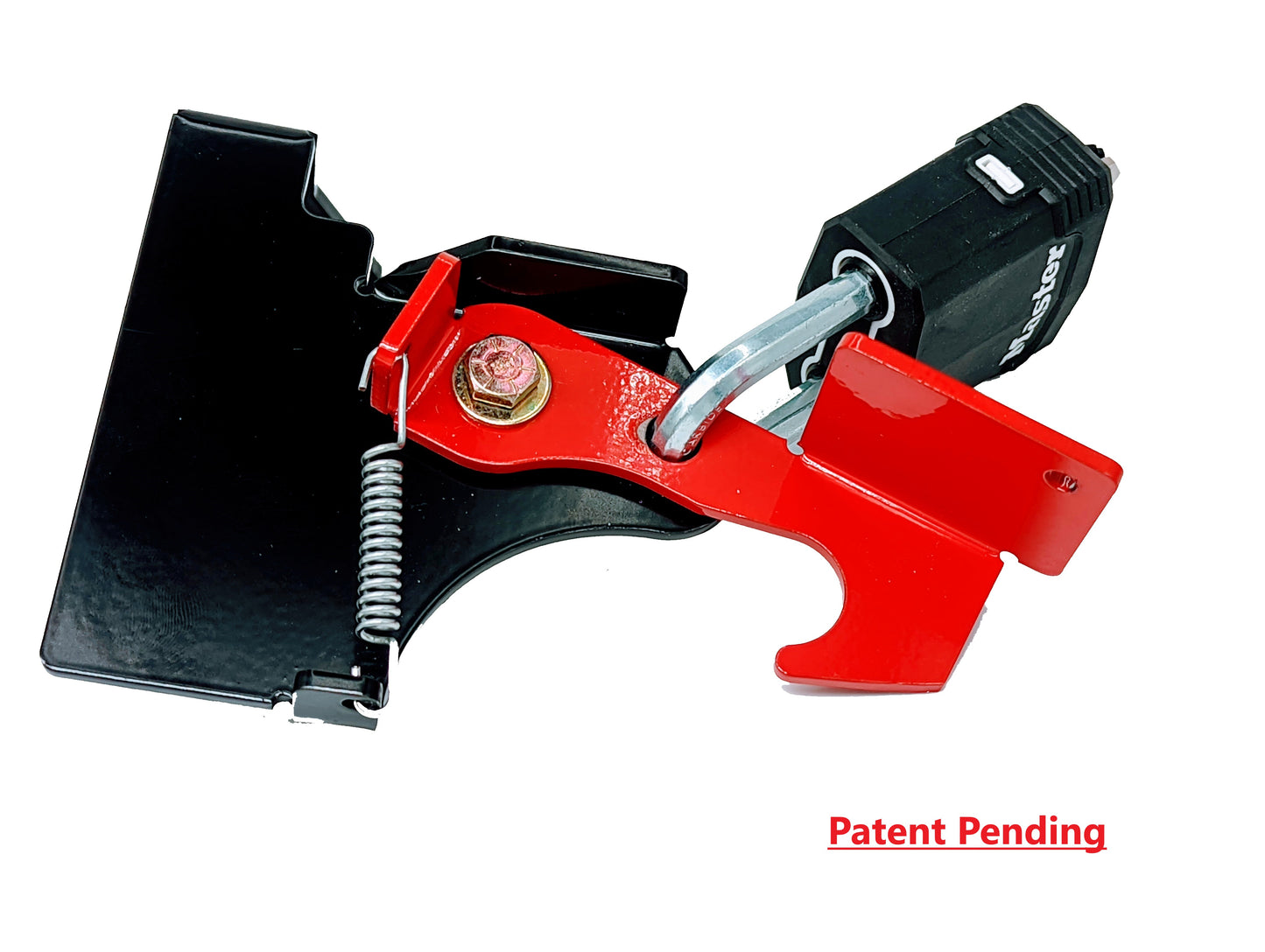

Once set, add your own pad lock (1/4" to 5/16" shaft) for that extra security.  To release, simply unlock pad lock, remove, and depress brake pedal.

ALWAYS USE PARK WITH THE SPRING BRAKE THINGY AND MAKE SURE YOUR BRAKES ARE IN GOOD WORKING CONDITION.
